Nickel-Alloy

Nickel 200 | Nickel 200 Machinability | Nickel 200 Properties | Nickel 200 composition | Nickel 200 density | Nickel 200 datasheet | Nickel Applications

Nickel-Alloy



Cupronickel or copper-nickel is an alloy of copper that contains nickel and strengthening elements, such as iron and manganese. Cupronickel is highly resistant to corrosion in seawater, because its electrode potential is adjusted to be neutral with regard to seawater. Because of this, it is used for piping, heat exchangers and condensers in seawater systems, as well as marine hardware, and sometimes for the propellers, crankshafts and hulls of premium tugboats, fishing boats and other working boats.

Please note: we may supply special diameters in small quantities at request

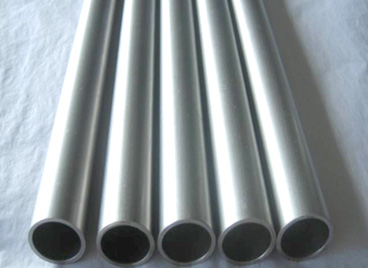

 Nickel Tube Manufacturer & Industrial Suppliers

Nickel Alloys Tubes
Sr. No.
Material
Size
Sch. & Swg.
Specification
Manufacturer
1
Cupro Nickel
Hastelloy
Nickel
Monel
Inconel
Alloy 20
Duplex
6.35 mm OD

To

152 mm OD

20 Swg.
18 Swg.
16 Swg.



14 Swg.
12 Swg.
10 Swg.
IS
BS
ASTM
UNS

Imported
&
Indian Mfg




UNS NICKEL MATERIAL GRADES
Nickel grade UNS Werkstoff DIN
NICKEL 200 UNS N02200 24,066 Ni 99.2

Note:-
Nickel Alloy in Grade
  • Cupro Nickel / Copper Nickel
    BS 2871/ PART 3 CN 102,107, 108 (90/10, 70/30, 66/30/2/2)
    ASTM B 111 C 70600, 71500, 71640
  • Titanium
    ASTM B 338 Gr.1,2,3,7,9,11,12
  • Hastelloy
    C-4, C-22, C276, B-2,
  • Nickel
    ASTM B 161- 200 & 201 ,
  • Monel
    ASTM B 165 -400 & K500,
  • Inconel
    600, 601, 625 & 825,
  • Incolloy
    800, 800H,
  • Alloy 20
  • Duplex Steel
  • SS 904L

In Form of Round,
Coil
‘U’ Shape etc.
In Length of
Standard
& Cut length
Value Added Service Draw & Expansion as per required Size & Length
Bending
Annealed & Pickled
Machining Etc.
Test Certificate
Manufacturer Test Certificate
Laboratory Test Certificate from Govt. Approved Lab.
Under Third Party Inspection .
Application
Shipping
Offshore Construction
Condensers
Heat Exchangers etc.
Specialize
Cupro Nickel Tube


Cupro Nickel Rods 90/10

Chemical Properties
Pb 0.05 Max.
Fe 1.00 - 1.80
Mn 1.00 Max.
Zn 1.00 Max.
Cu Ag Remainder Ni Co 9.00 - 11.00

Mechenical Properties
Light Drawn
Flattening Test Reqd. (After 'O')
U.T.S. ksi 45.00 Min
Y.S. at 0.5% Ext. ksi 35.00 Min.
Expansion Test 30% at 60 degree Reqd. (After 'O')

Annealed Temper
Flattening Test Reqd.
Grain Size at 75 X mm Avg. 0.010 - 0.045
U.T.S. ksi 40.00 Min.
Y.S. at 0.5% Ext. ksi 15.00 Min.
Expansion Test 30% at 60 degree Reqd.

Cupro Nickel Rods 90/10

Chemical Properties
Sn 0.10 Max.
Pb 0.05 Max
Ni 4.00 - 5.00
Fe 0.10 Max.
Mn 0.25 Max.
As 0.10 Max.
Cu Ag 95.00 - 96.000
Sb 0.01 Max.
Bi 0.0025 Max.
Oxygen (O2) 0.08 Max.

Mechenical Properties
Annealed
U.T.S. MPa 216 - 275 (Strip cut from Ring Tube)
%Elongation at 5.65Sq.Rt So G.L. 40.00 Min. (Strip cut from Ring Tube)
Flattening Test Reqd.
Bend Test Reqd. (180 degree close)

Cupro Nickel Tubes 90/10 for Heat Exchangers & Condensers

These Cupro Nickel tubes & pipes for Heat Exchangers & Condensers are very important for all Industrial fields. The company has experience in these areas and is able to supply these tubes in accordance with most international standards and special customer requirements.

Cupro Nickel Tubes 90/10 for Automobile Industries

The Move To Copper-Nickel Tubing
Copper had been proved since the early days to have many good attributes. It was easy to bend and had very high corrosion resistance, but there was concern about its low corrosion-fatigue strength. When copper-nickel was introduced, it displayed corrosion resistance similar to copper, higher general strength and better fatigue strength. Good formability allows ease of flaring and bending, and although the metal cost is greater than that of steel alternatives, copper-nickel is very attractive in view of its extra life, trouble-free installation and safety/reliability characteristics.

Properties of Copper-Nickel Brake Tubing
The copper-nickel alloy used for brake tubing typically contains 10% nickel, with iron and manganese additions of 1.4% and 0.8% respectively. The product conforms to ASTM B466 (American Society for Testing and Materials), which specifies dimensions, tensile strength and yield strength. Formability and internal cleanliness conform to specifications SAE J527, ASTM A254 and SMMT C5B (Society of Motor Manufacturers and Traders). Also, the alloy meets the requirements for pressure containment, fabrication and corrosion resistance for ISO 4038 (International Standards Organization) and SAE J1047.
The mechanical properties of alloy C70600 in comparison with steel and copper are shown in

Dimension Tolerance
Material Ultimate Tensile Strength1000 psi (MPa) Yield Strength 0.5% Ext.under Load 1000 psi (MPa) YElongation % in 2 in. Fatigue Strength (10x7 cycles) 1000 psi (MPa) Burst Pressure* 1000 psi (MPa)
Copper-brazed Steel 48-55 (0.330-0.380) 28-34 (0.190-0.235) 30-40 30 (
0.210)
19.5
(0.135)
C12200-Phosphorus deoxidized Copper 32-38 (0.220-0.265) 10-14 (0.070-0.100) 45-60 10
(0.070)
12 (
0.083)
C70600-Copper Nickel 90-10 48-54 (0.330-0.370) 16-22 (0.110-0.150) 40-55 15
(0.100)
19 (
0.130)

Corrosion Resistance
For many years prior to its application as a brake tubing material, alloy C70600 had been used in ships, power station condensers and hydraulic lines on tankers, and had displayed excellent resistance to saline conditions. Early tests revealed that copper-nickel has almost the same resistance to burst pressure as steel. In testing, however, when exposed to salt spray over 180 days, steel's burst strength decreases significantly. The copper alloy remains consistently resistant.

Curpo Nickel Tubes 95/5 & 90/10 for Marine Application

Chemical Composition

Classi-
fication
Class Chemical Composition (%) Related Standards
Cu Zn Pb Fe P Sn Ni Mn Al As Other ISS KS JIS ASTM BS DIN
Cu-Ni Tube 1 rem. 1.00 max 0.05 max 1.3-1.7 - - 4.8-6.2 0.3-0.8 - - IS:15
45
CuNi5
Fe
D 5301 C7040 CuNi
95 5
7040
B 111
C70400
2871
CN101
1785
CuNi
5Fe
2 rem. 1.00 max 0.05 max 1.0-1.8 - - 9.0-11.0 1.0-max - - IS:15
45 CuNi
10Fe1
C 7060 CuNi
90:10
C 7060

70600
CN102 CuNi
10Fe

Mechanical Properties

Classification Temper Designation Cu Alloy
UNS No.
Tensile Test
Outside diameter (mm) Thickness (mm) Tensile Strength Kgf/mm2 Elongation (%) Yield Strength (kg/mm2)
Copper Nickel Tube 061 Annealed C70400 5-250mm 0.8-10 27(260) 9(85) -
H55 Light Drawn C70400 5-250mm 0.8-10 28(275) - 21(205)
061 Annealed C70600 5-250mm 0.8-10 28(275) - 11(105)
H55 Light Drawn C70600 5-250mm 0.8-10 32(310) - 25(240)

Dimensional Range:

  • Outer Diameter: 4.00 to 22.00 mm
  • Wall Thickness: Between 0.15mm and 1.50 mm
  • Length: Up to 6 mtrs
End Applications:
  • Heat Exchangers, Oil Coolers, Radiators, High Capacity Power Plants, Ship Building & Ship Repairs, Condensers, Offshore Oil rigs, Distiller Tubes, Evaporators, Ferrules etc

Other names

Aside from cupronickel, many other terms exist which describe the same material. Still registered as tradenames are Alpaka or Alpacca' (registered trademark), Argentan Minargent, and the French term name Cuivre blanc. Occasionally, cupronickel is also referred to as "hotel silver", plata alemana (Spanish for "German silver"), "German silver" and "Chinese silver".

UNS standard compositions* of wrought alloys (in at%). Maximum or range.

Alloy UNS No. Common name European spec Ni Fe Mn Cu
C70600 90-10 CuNi10Fe 9-11 1-1.8 1 Remainder
C71500 70-30 CuNi30Fe 29–33 0.4–1.0 1 Remainder
C71640 66-30-2-2 29–32 1.7–2.3 1.5–2.5 Remainder

Properties of some Cu-Ni alloys

Alloy Density
g/cm3
Thermal conductivity
W/(m·K)
TEC
µm/(m·K)
Electrical resisitivity
µOhm·cm
Elastic modulus
GPa
Yield strength
MPa
Tensile strength
MPa
90-10 8.9 50 17 19 135 105 275
70-30 8.95 29 16 34 152 125 360
66-30-2-2 8.86 25 15.5 50 156 170 435


Nickel Tube Application
Nickel Tube Uses
  • Architecture and construction
  • Aerospace
  • Nuclear Power
  • Fertilizers
  • Valve & Pumps
  • Petrochemical
  • Motor industry
  • Food and drink
  • Electronics
  • Transport and traffic
  • Pulp and paper industry
  • Medicine
  • Energy industry
  • Chemicals industry
  • Nickel Alloy in Pulp and Paper
Nickel Tube Order & Packing Information
  Min. Order: 10 Pieces (or please enquire for your customized order)
Trade Terms: FOB, CIF
Payment Terms: L/C, T/T
Packing: as per requirement
Place of Origin: Mumbai, India
Means of Transport: Land, Ocean
Delivery Date: one or two week
