Our clients can avail from us an advanced range of ANSI B16.9 ELBOWS that are available in different dimensions. These ANSI B16.9 ELBOWS find extensive application in diverse industries and have gained huge appreciation for their excellent features. The use high-grade raw material and latest technology machines in the manufacturing process. We offer these ANSI B16.9 ELBOWS in several sizes, thicknesses and other specifications to our respected customers.

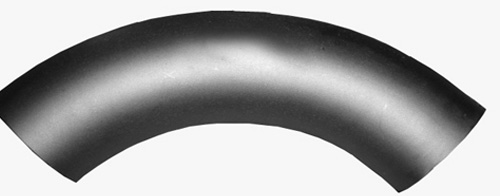

ANSI/ASME B16.9 5D Elbow
Specifications :
RANGE : 2"NB TO 18" NB ANSI B 16.9 IN
SCH : 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS
TYPE : SEAMLESS / WELDED/ FABRICATED
Form : Long radius Bend, Piggable Bend, Hot bend, With R=3D, 5D, 6D, 8D, 10D & Customized Bend
Offer : Minimum Wall Thinning rate & Ovality, No Wrinkles
Materials
Stainless Steel 5D Bend
ASTM A 403 WP TP304,H,L,316,H,L,Ti,309 310, 317L, 321, 347, 904L
Duplex Stainless Steel 5D Bend
ASTM A 815 UNS S31803, S32760, S31500
Alloy Steel 5D Bend
ASTM A 234 WP-P5, P9, P11, P12, P21, P22 & P91
Carbon Steel 5D Bend
ASTM A 234 WPB
Low Temperature Carbon Steel 5D Bend
ASTM A 234 WPB
Nickel Alloy 5D Bend :
Standard: ASTM / ASME SB 336
UNS 10276 HASTELLOY C 276 Bend
UNS 2200 NICKEL 200 Bend
UNS 2201 NICKEL 201 Bend
UNS 4400 MONEL 400 Bend
UNS 8020 ALLOY 20 Bend
UNS 8825 INCONEL 825 Bend
UNS 6600 INCONEL 600 Bend
UNS 6601 INCONEL 601 Bend
UNS 6625 INCONEL 625 Bend
Hot Dip Galvanizing
Epoxy Coating
Tags 5D Bend
Standards: | ANSI - B 16.9 ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings' API 590-605 ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings'' ASME B16.25 - 'Buttwelding Ends' ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns' MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications' |
Schedule: | Sch 5 TO Sch XXS. |
Sizes: | 1/2” TO 36” (SEAMLESS UPTO 24”) (WELDED 8” TO 36” ) |
Materials: | Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30 Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
Type: | Butt Weld (BW) |
Thickness: | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
Dimension: | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
Specialize: | Long Bend with Radius – R = 3D, 5D & 10D, Pigabble Bend & IBR Fittings |
