These Lapped Flanges are always used with either a stub end or taft which is butt welded to the pipe with the flange loose behind it. This means the stub end or taft always makes the face. The lap joint is favoured in low pressure applications because it is easily assembled and aligned.
Lapped/Loose Flange

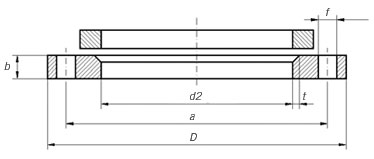

Dimensions
Dimensions & Masses of UNI 6089 PN10 Loose Flange
| ITALIAN STANDARDS UNI 6089 LOOSE FLANGE PN 10 | ||||||||||
| Directions for the designation | Lapped flanges | Sscrews | Weight | |||||||
| Rated Diameter |
External diameter of the pipe |
a | b | D | d2 | f | t | Holes | Flange | |
| 25 | 30 | 85 | 16 | 115 | 33 | 14 | 4 | 4 | M12 | 1,11 |
| 33,7 | 37 | 1,08 | ||||||||
| 32 | 38 | 100 | 16 | 140 | 41 | 18 | 4 | 4 | M 16 | 1,63 |
| 42,4 | 46 | 1,58 | ||||||||
| 40 | 44,5 | 110 | 16 | 150 | 48 | 18 | 4 | 4 | M 16 | 1,85 |
| 48,3 | 52 | 1,81 | ||||||||
| 50 | 57 | 125 | 16 | 165 | 62 | 18 | 4 | 4 | M 16 | 2,16 |
| 60,3 | 64 | 2,14 | ||||||||
| 65 | 76,1 | 145 | 16 | 185 | 80 | 18 | 4 | 4 | M 16 | 2,60 |
| 80 | 88,9 | 160 | 18 | 200 | 94 | 18 | 5 | 8** | M 16 | 3,14 |
| 100 | 108 | 180 | 18 | 220 | 113 | 18 | 5 | 8 | M 16 | 3,63 |
| 114,3 | 119 | 3,47 | ||||||||
| 125 | 133 | 210 | 18 | 250 | 138 | 18 | 5 | 8 | M 16 | 4,49 |
| 139,7 | 145 | 4,26 | ||||||||
| 150 | 159 | 240 | 18 | 285 | 164 | 22 | 5 | 8 | M 20 | 5,54 |
| 168,3 | 174 | 5,16 | ||||||||
| 175 | 193,7 | 270 | 20 | 315 | 200 | 22 | 5 | 8 | M 20 | 6,76 |
| 200 | 219,1 | 295 | 20 | 340 | 225 | 22 | 5 | 8 | M 20 | 7,46 |
| 250 | 267 | 350 | 22 | 395 | 273 | 22 | 5 | 12 | M 20 | 10,2 |
| 273 | 279 | 9,73 | ||||||||
| 300 | 323,9 | 400 | 26 | 445 | 330 | 22 | 5 | 12 | M 20 | 13,2 |
| 350 | 355,6 | 460 | 28 | 505 | 362 | 22 | 5 | 16 | M 20 | 19,9 |
| 368 | 374 | 18,4 | ||||||||
| 400 | 406,4 | 515 | 32 | 565 | 413 | 25 | 6 | 16 | M 22 | 27,2 |
| 419 | 426 | 25,0 | ||||||||
| 450 | 457,2 | 565 | 34 | 615 | 464 | 25 | 6 | 20 | M 22 | 31,3 |
| 500 | 508 | 620 | 38 | 670 | 515 | 25 | 6 | 20 | M 22 | 39,9 |
| 600 | 609,6 | 725 | 44 | 780 | 618 | 30 | 6 | 20 | M 27 | 56,3 |
| 700 | 711,2 | 840 | 50 | 895 | 721 | 30 | 6 | 24 | M 27 | 79,7 |
| 800 | 812,8 | 950 | 56 | 1015 | 824 | 33 | 6 | 24 | M 30 | 112 |
| * | The weight is approximate and calculated on base 7.85 Kg/dm3 | |||||||||
| ** | For PN10 the flange should have 4 holes | |||||||||
