Home / Products / Flanges / GOST/ГОСТ 12820-80 FLANGE PN1.0MPA FORGED
We at Kalikund Steel & Engineering Co. Corporation believes in long term relationship with our clients worldwide, Required Quality in reasonable price of GOST/ГОСТ 12820-80 FLANGE PN1.0MPA FORGED are always our main priority. We are known as specialist in GOST/ГОСТ 12820-80 FLANGE PN1.0MPA FORGED,70% of our customers are associated with us for their regular requirements of GOST/ГОСТ 12820-80 FLANGE PN1.0MPA FORGED, Chinese suppliers also procures GOST/ГОСТ 12820-80 FLANGE PN1.0MPA FORGED from us bcz. We have the specialization & 35 years of experience to manufacture GOST/ГОСТ 12820-80 FLANGE PN1.0MPA FORGED.
we are a company focused on engineering and business activities in the area of environmental technologies. Our Product Supply Division offers a broad portfolio of Steel Flanges and GOST/ГОСТ 12820-80 FLANGE PN1.0MPA FORGED. When you place an order with Kalikund Steel & Engineering Co, you will receive the products that will stand up in service from people that will stand behind their product.
Kalikund Steel & Engineering Co. is the only one company in India supplying the Nickel Base Alloy Products since 35 years to more than 60 countries including GCC countries U.A.E, Oman, Saudi Arabia, Qatar, Bahrain, Egypt, Turkey , Far East (Singapore, Thailand, Malaysia, Indonesia), Europe (Poland, Italy, Portugal, Spain) South America (Brazil, Chile , Venezuela, Costa Rica), North America (USA & Canada) , Africa (South Africa, Angola)
Quality assurance is carried throughout the process from the raw material purchasing to processing, packing, storage and transportation. Every process strictly conforms to the ISO 9001:2008. "Quality First" is our promise forever to any of our customers. Our GOST/ГОСТ 12820-80 FLANGE PN1.0MPA FORGED are 100% inspected before being packed and dispatched & all our materials are tested to International standards. We have 3 levels to check quality of GOST/ГОСТ 12820-80 FLANGE PN1.0MPA FORGED. We also accept any Third Party of Inspection appointed by our customers, such as Lloyd's Register, TUV, DNV, BV, SGS, IEI, SAI and etc.
GOST/ГОСТ 12820-80 FLANGE PN1.0MPA FORGED
Dimensions & Masses of GOST 12820-80 Flange PN1.0MPa
| Давление PN = 1,0 МПа (10 кгс/с м²) | |||||||
| Наименование | D, мм |
D1, мм |
dв, мм |
b, мм |
d, мм |
отв., шт. |
Масса, кг. |
| Фланец плоский ГОСТ 12820-80 (01) 1-15-10 ст.3 (20) | 95 |
65 |
19 |
10 |
14 |
4 |
0,51 |
| Фланец плоский ГОСТ 12820-80 (01) 1-20-10 ст.3 (20) | 105 |
75 |
26 |
12 |
0,74 |
||
| Фланец плоский ГОСТ 12820-80 (01) 1-25-10 ст.3 (20) | 115 |
85 |
33 |
12 |
0,89 |
||
| Фланец плоский ГОСТ 12820-80 (01) 1-32-10 ст.3 (20) | 135 |
100 |
39 |
14 |
18 |
1,4 |
|
| Фланец плоский ГОСТ 12820-80 (01) 1-40-10 ст.3 (20) | 145 |
110 |
46 |
15 |
1,71 |
||
| Фланец плоский ГОСТ 12820-80 (01) 1-50-10 ст.3 (20) | 160 |
125 |
59 |
15 |
2,06 |
||
| Фланец плоский ГОСТ 12820-80 (01) 1-65-10 ст.3 (20) | 180 |
145 |
78 |
17 |
2,8 |
||
| Фланец плоский ГОСТ 12820-80 (01) 1-80-10 ст.3 (20) | 195 |
160 |
91 |
17 |
3,19 |
||
| Фланец плоский ГОСТ 12820-80 (01) 1-100-10 ст.3 (20) | 215 |
180 |
110 |
19 |
8 |
3,96 |
|
| Фланец плоский ГОСТ 12820-80 (01) 1-125-10 ст.3 (20) | 245 |
210 |
135 |
21 |
5,4 |
||
| Фланец плоский ГОСТ 12820-80 (01) 1-150-10 ст.3 (20) | 280 |
240 |
161 |
21 |
22 |
6,62 |
|
| Фланец плоский ГОСТ 12820-80 (01) 1-200-10 ст.3 (20) | 335 |
295 |
222 |
21 |
8,05 |
||
| Фланец плоский ГОСТ 12820-80 (01) 1-250-10 ст.3 (20) | 390 |
350 |
273 |
23 |
12 |
10,65 |
|
| Фланец плоский ГОСТ 12820-80 (01) 1-300-10 ст.3 (20) | 440 |
400 |
325 |
24 |
12,9 |
||
| Фланец плоский ГОСТ 12820-80 (01) 1-350-10 ст.3 (20) | 500 |
460 |
377 |
24 |
16 |
15,85 |
|
| Фланец плоский ГОСТ 12820-80 (01) 1-400-10 ст.3 (20) | 565 |
515 |
426 |
26 |
26 |
21,56 |
|
| Фланец плоский ГОСТ 12820-80 (01) 1-500-10 ст.3 (20) | 670 |
620 |
530 |
28 |
20 |
27,7 |
|
| Фланец плоский ГОСТ 12820-80 (01) 1-600-10 ст.3 (20) | 780 |
725 |
630 |
31 |
30 |
39,4 |
|
| Фланец плоский ГОСТ 12820-80 (01) 1-800-10 ст.3 (20) | 1010 |
950 |
820 |
37 |
33 |
24 |
79,16 |
| Фланец плоский ГОСТ 12820-80 (01) 1-1000-10 ст.3 (20) | 1220 |
1160 |
1020 |
43 |
28 |
118,43 |
|
| Фланец плоский ГОСТ 12820-80 (01) 1-1200-10 ст.3 (20) | 1455 |
1380 |
1220 |
51 |
39 |
32 |
197,44 |
| Проход условный Dy | Py 1,0 МПа (10 кгс/см2) | |||||
| dн | dв | b | Масса, кг | |||
| с соединительным выступом | с выступом | с впадиной | ||||
| 10 | 14 | 15 | 10 | 0,46 | 0,46 | 0,44 |
| 15 | 18 | 19 | 0,51 | 0,51 | 0,49 | |
| 20 | 25 | 26 | 12 | 0,74 | 0,75 | 0,71 |
| 25 | 32 | 33 | 0,89 | 0,89 | 0,84 | |
| 32 | 38 | 39 | 14 | 1,40 | 1,39 | 1,34 |
| 40 | 45 | 46 | 15 | 1,71 | 1,72 | 1,67 |
| 50 | 57 | 59 | 2,06 | 2,03 | 1,99 | |
| 65 | 76 | 78 | 17 | 2,80 | 2,77 | 2,69 |
| 80 | 89 | 91 | 3,19 | 3,13 | 3,08 | |
| 100 | 108 (А) | 110 | 19 | 3,96 | 3,94 | 3,76 |
| 114 (Б) | 116 | 3,81 | 3,76 | 3,61 | ||
| 125 | 133 (А) | 135 | 21 | 5,40 | 5,38 | 5,18 |
| 140 (Б) | 142 | 5,15 | 5,08 | 4,93 | ||
| 150 | 152 (А) | 154 | 6,92 | 6,97 | 6,62 | |
| 159 (Б) | 161 | 6,62 | 6,62 | 6,33 | ||
| 168 (В) | 170 | 6,24 | 6,17 | 5,95 | ||
| (175) | 194 | 196 | 7,32 | 7,31 | 7,02 | |
| 200 | 219 | 222 | 8,05 | 8,04 | 7,71 | |
| (225) | 245 | 245 | 9,30 | 9,30 | 9,05 | |
| 250 | 273 | 273 | 23 | 10,65 | 10,66 | 10,22 |
| 300 | 325 | 325 | 24 | 12.90 | 12,89 | 12,21 |
| 350 | 377 | 377 | 15,85 | 15,79 | 14,96 | |
| 400 | 426 | 426 | 26 | 21,56 | 21,51 | 20,49 |
| (450) | 480 | 480 | 22,76 | 22,68 | 21,67 | |
| 500 | 530 | 530 | 28 | 22,70 | 28,02 | 26,86 |
| 600 | 630 | 630 | 31 | 39,40 | 39,26 | 37,48 |
| (700) | 720 | 720 | 34 | 59,46 | 58,58 | 56,45 |
| 800 | 820 | 820 | 37 | 79,16 | 77,89 | 76,08 |
| (900) | 920 | 920 | 40 | 94,13 | - | - |
| 1000 | 1020 | 1020 | 43 | 118,43 | ||
| 1200 | 1220 | 1222 | 51 | 197,44 | ||
| 1400 | 1420 | 1420 | 60 | 278,92 | ||
| 1600 | 1620 | 1620 | 70 | 422,65 | ||

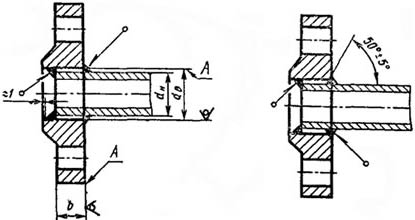

Фланцы стальные плоские приварные с соединительным выступом по ГОСТ 12820-80
