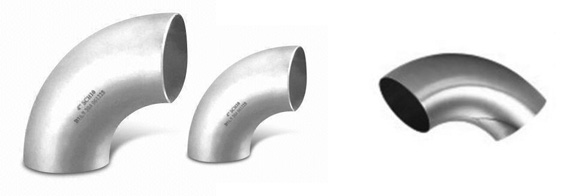

ANSI/ASME B16.9 Seamless Buttwelding 45° and 90° Elbows

ANSI/ASME B16.9 Seamless Buttwelding 45° and 90° Elbows Manufacturer & Exporter

Standards: ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings''
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications'
Schedule: Sch 5 TO Sch XXS.
Sizes: 1/2” TO 36”
(SEAMLESS UPTO 24”)
(WELDED 8” TO 36” )
Materials: Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L,  316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type: Butt Weld (BW)
Thickness: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension: ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

Enquiry

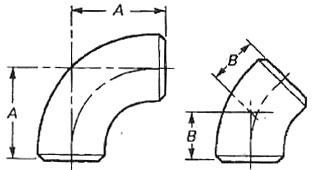

DIMENSIONS OF  SEAMLESS BUTT WELDING ELBOWS

FACTORY-MADE WROUGHT BUTTWELDING FITTINGS

ANSI/ASME B16.9 Seamless Buttwelding 45° and 90° Elbows Manufacturer & Exporter

Nominal   Pip  Size (NPS) DN Outside Diameter at Bevel Center- to-End
45º Elbow   B 90º Elbow   A
Long Radius Long Radius Short Radius
1/2   21.3 16 38
3/4   26.7 19 38
1 25 33.4 22 38 25
1-1/4 32 42.2 25 48 32
1-1/2 40 48.3 28 57 38
2 50 60.3 35 76 51
2-1/2 65 73.0 45 95 64
3 80 88.9 51 114 76
3-1/2 90 101.6 57 133 89
4 100 114.3 64 152 102
5 125 141.3 79 191 127
6 150 168.3 95 229 152
8 200 219.1 127 305 203
10 250 273.0 159 381 254
12 300 323.8 191 457 305
14 350 355.6 222 533 356
16 400 406.4 254 610 406
18 450 457 286 686 457
20 500 508 318 762 508
22 550 559 343 838 559
24 600 610 381 914 610

NOTES: All dimensions are in millimeters.
