Home / Products / Butt-Welding Fittings / ANSI/ASME B16.9 Butt weld Swedge Nipple
We are one of the best exporters and traders of ANSI B16.9 Butt weld Swedge Nipple / Swage nipple, which are made with high quality standards. ANSI B16.9 Butt weld Swedge Nipple / Swage nipple are widely recognized as high chromium steel that is extensively utilized in high temperature applications. These ANSI B16.9 Butt weld Swedge Nipple / Swage nipple are appreciated for durability and high strength. We do not compromise with the quality of these ANSI B16.9 Butt weld Swedge Nipple / Swage nipple and so we use premium quality raw material for the manufacturing of these Buttweld Fittings. Other eminent features of these Buttweld Fittings include high strength and resistance from corrosion. These Buttweld Fittings are marketed across the globe at competitive prices.

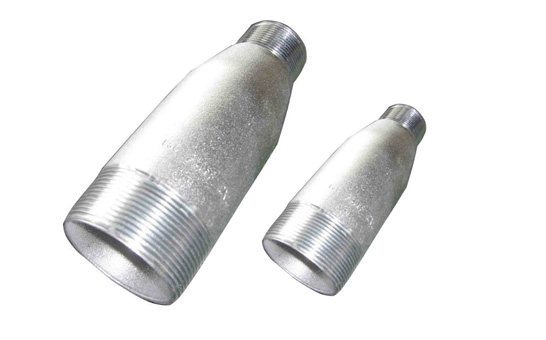

ANSI/ASME B16.9 Butt weld Swedge Nipple / Swage nipple
| Standards: | ANSI - B 16.9 ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings' API 590-605 ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings'' ASME B16.25 - 'Buttwelding Ends' ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns' MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications' |
| Schedule: | Sch 5 TO Sch XXS. |
| Sizes: | 1/2” TO 36” (SEAMLESS UPTO 24”) (WELDED 8” TO 36” ) |
| Materials: | Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30 Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Type: | Butt Weld (BW) |
| Thickness: | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Dimension: | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
| Type: | male end reducing nipple concentric, eccentric |
| end preparation | square cut/plain end, threaded end, beveled end, grooved end |
| connection: | butt-welding for beveled end, socket-welding for square cut / plain end,threaded or grooved |
Specification Compliance Data for Swage Nipples
| End Connections | ||
| Threads | ANSI/ASME | B1.20.1 |
| API | 5B | |
| Beveled Ends | ANSI | B16.9 |
| Square Cut Ends | ANSI | B16.11 |
| Swage Nipples | ||
| Stainless | ASME/ASTM | SA403WP |
| Low Temp | ASME/ASTM | SA403WP |
| Nickel Alloy | ASME/ASTM | SB366 |
| Materials | ||
| Stainless | ASME/ASTM | SA312 & 182 |
| Chrome & Low Temp | ASME/ASTM | SA335, 333, 182, 350 |
| Nickel Alloy | ASME/ASTM | SB161, 165, 163, 407, 464, 622, 160, 164, 166, 408, 473, 619 |
Dimensions
Seamless Swage Nipples
| I.D. or Nominal Size | Outside Diameter | Length | ||
| NU | EUE | NU | EUE | |
| 1/8 | -- | -- | -- | -- |
| 1/4 | .540 | -- | 2 1/4 | -- |
| 3/8 | .675 | -- | 2 1/2 | -- |
| 1/2 | .840 | -- | 2 3/4 | -- |
| 3/4 | 1.050 | -- | 3 | -- |
| 1 | 1.315 | 1.469 | 3 1/2 | 4 1/2 |
| 1 1/4 | 1.660 | 1.812 | 4 | 6 |
| I.D. or Nominal Size | Outside Diameter | Length | ||
| NU | EUE | NU | EUE | |
| 1 1/2 | 1.900 | 2.094 | 4 1/2 | 6 |
| 2 | 2.375 | 2.594 | 6 1/2 | 8 |
| 2 1/2 | 2.875 | 3.094 | 7 | 8 |
| 3 | 3.500 | 3.750 | 8 | 8 |
| 3 1/2 | 4.000 | 4.250 | 8 | 8 |
| 4 | 4.500 | 4.750 | 9 | 9 |
