Our range of Butt Weld Reducers is available in two different forms, one is concentric and another is eccentric types. Developed using quality steel and other alloys, the reducer finds usage in sugar mills & distilleries, pumps & petrochemicals cement & construction industries and steel plants. Available in various sizes, schedules and flange configurations, our range can be customized as per the requirements of clients. The reducers have inlet and outlet ends and they align to a common center line.

ANSI/ASME B16.9 Butt weld Reducers

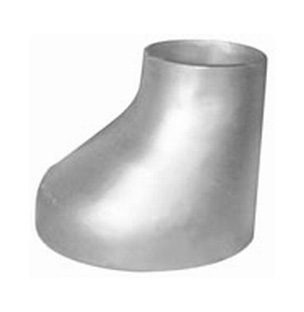

ANSI/ASME B16.9 Butt weld Eccentric Reducer Manufacturer & Exporter

Standards: ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings''
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications'
Schedule: Sch 5 TO Sch XXS.
Sizes: 1/2” TO 36”
(SEAMLESS UPTO 24”)
(WELDED 8” TO 36” )
Materials: Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L,  316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type: Butt Weld (BW)
Thickness: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension: ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

Enquiry

Dimensions

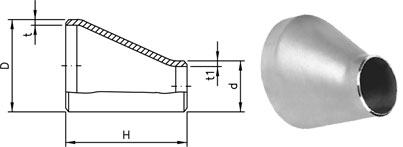

REDUCERS - Ansi 16.9 dimensions

ANSI/ASME B16.9 Butt weld Reducers Manufacturer & Exporter

ANSI/ASME B16.9 Butt weld Reducers Manufacturer & Exporter



REDUCERS
inches mm D d H
3/4 x 3/4 20 x 15 26,67 21,34 38,10
3/4 x 3/8 20 x 10 26,67 17,14 38,10
1 x 3/4 25 x 20 33,40 26,67 50,80
1 x 1/2 25 x 15 33,40 21,34 50,80
1 1/4 x 1 32 x 25 42,16 33,40 50,80
1 1/4 x 3/4 32 x 20 42,16 26,67 50,80
1 1/4 x 1/2 32 x 15 42,16 21,34 50,80
1 1/2 x 1 1/4 40 x 32 48,26 42,16 63,50
1 1/2 x 1 40 x 25 48,26 33,40 63,50
1 1/2 x 3/4 40 x 20 48,26 26,67 63,50
1 1/2 x 1/2 40 x 15 48,26 21,34 63,50
2 x 1 1/2 50 x 40 60,32 48,26 76,20
2 x 1 1/4 50 x 32 60,32 42,16 76,20
2 x 1 50 x 25 60,32 33,40 76,20
2 x 3/4 50 x 20 60,32 26,67 76,20
2 1/2 x 2 65 x 50 73,02 60,32 88,90
2 1/2 x 1 1/2 65 x 40 73,02 48,26 88,90
2 1/2 x 1 1/4 65 x 32 73,02 42,16 88,90
2 1/2 x1 65 x 25 73,02 33,40 88,90
3 x 2 1/2 80 x 65 88,90 73,02 88,90
3 x 2 80 x 50 88,90 60,32 88,90
3 x 1 1/2 80 x 40 88,90 48,26 88,90
3 x 1 1/4 80 x 32 88,90 42,16 88,90
3 1/2 x 3 90 x 80 101,60 88,90 101.60
3 1/2 x 2 1/2 90 x 65 101,60 73,02 101.60
3 1/2 x 2 90 x 50 101,60 60,32 101.60
3 1/2 x 1 1/2 90 x 40 101,60 48,26 101.60
3 1/2 x 1 1/4 90 x 32 101,60 42,16 101.60
4 x 3 1/2 100 x 90 114,30 73,02 101.60
4 x 3 100 x 80 114,30 88,90 101.60
4 x 2 1/2 100 x 65 114,30 73,02 101.60
4 x 2 100 x 50 114,30 60,32 101.60
4 x 1 1/2 100 x 40 114,30 48,26 101.60
5 x 4 125 x 100 141,30 114,30 127,00
5 x 3 1/2 125 x 90 141,30 101,60 127,00
5 x 3 125 x 80 141,30 88,90 127,00
5 x 2 1/2 125 x 65 141,30 73,02 127,00
5 x 2 125 x 50 141,30 60,32 127,00
6 x 5 150 x 125 168,27 141,30 139,7
6 x 4 150 x 100 168,27 114,30 139,7
6 x 1/2 150 x 90 168,27 101,60 139,7
6 x 3 150 x 80 168,27 88,90 139,7
6 x 1/2 150 x 65 168,27 73,02 139,7
8 x 6 200 x 150 219,07 168,27 152,4
8 x 5 200 x 125 219,07 141,30 152,4
8 x 4 200 x 100 219,07 114,30 152,4
8 x 3 1/2 200 x 90 219,07 101,60 152,4
10 x 8 250 x 200 273,05 219,07 177,8
10 x 6 250 x 150 273,05 168,27 177,8
10 x 5 250 x 125 273,05 141,30 177,8
10 x 4 250 x 100 273,05 114,30 177,8
12 x 10 300 x 250 323,85 273,05 203,2
12 x 8 300 x 200 323,85 219,07 203,2
12 x 6 300 x 150 323,85 168,27 203,2
12 x 5 300 x 125 323,85 141,30 203,2
14 x 12 350 x 300 355,60 323,85 330,2
14 x 10 350 x 250 355,60 273,05 330,2
14 x 8 350 x 200 355,60 219,07 330,2
14 x 6 350 x 150 355,60 168,27 330,2
16 x 14 400 x 350 406,40 355,60 355,6
16 x 12 400 x 300 406,40 323,85 355,6
16 x 10 400 x 250 406,40 273,05 355,6
16 x 8 400 x 200 406,40 219,07 355,6
18 x 16 450 x 400 457,20 406,40 381,0
18 x 14 450 x 350 457,20 355,60 381,0
18 x 12 450 x 300 457,20 323,85 381,0
18 x 10 450 x 250 457,20 273,05 381,0
20 x 18 500 x 450 508,00 457,20 508,0
20 x 16 500 x 400 508,00 406,40 508,0
20 x 14 500 x 350 508,00 355,60 508,0
20 x 12 500 x 300 508,00 323,85 508,0
22 x 20 550 x 500 558,80 508,00 508,0
22 x 18 550 x 450 558,80 457,20 508,0
22 x 16 550 x 400 558,80 406,40 508,0
22 x 14 550 x 350 558,80 355,60 508,0
24 x 22 600 x 550 609,6 558,80 508,0
24 x 20 600 x 500 609,6 508,00 508,0
24 x 18 600 x 450 609,6 457,20 508,0
24 x 16 600 x 400 609,6 406,40 508,0
Dimension in mm.


REDUCERS - Ansi 16.9 tolerances

DIMENSIONAL TOLERANCES - REDUCERS
  Reducers
Nominal Pipe Size (NPS) Outside Ø at Bevel Inside Ø at End Wall Thickness
t / t1		 Overall Length
H
1/2 a 2 1/2 1 0,8 Not 2
3 a 3 1/2 1 1,6 less 2
4 +2 -1 1,6 than 2
5 a 6 +3 -1 1,6 87,50% 2
8 2 1,6 of nominal 2
10 +4 -3 3,2 tickness 2
12 a 18 +4 -3 3,2 3
20 a 24 +6 -5 4,8   3
26 a 30 +7 -5 4,8   3
32 a 48 +7 -5 4,8   5


REDUCERS - Weights

WEIGHTS OF FITTINGS
NPS
inches		 REDUCERS*
Sch.
5S		 Sch.
10S		 Sch.
40S		 Sch.
80S
1/2 0.04 0.04 0.05 0.06
3/4 0.10 0.10 0.14 0.18
1 0.12 0.12 0.16 0.22
1 1/4 0.18 0.18 0.22 0.27
1 1/2 0.21 0.21 0.28 0.33
2 0.30 0.30 0.40 0.55
2 1/2 0.45 0.45 0.80 1.00
3 0.50 0.50 0.90 1.20
4 0.80 0.80 1.50 2.20
5 1.40 1.40 2.70 3.70
6 2.00 2.00 4.00 5.80
8 3.10 3.10 6.90 9.30
10 4.80 4.80 10.5 14.5
12 9.00 9.00 19.0 25.0
14 15.5 15.5 31.0 41.5
16 19.0 19.0 38.0 50.5
18 23.0 23.0 46.0 61.5
20 34.0 34.0 58.5 78.0
24 50.0 50.0 75.0 100
Approximate weights in kg, density 8 kg/dm3
Weights are referred to the reduction with the first smaller diameter

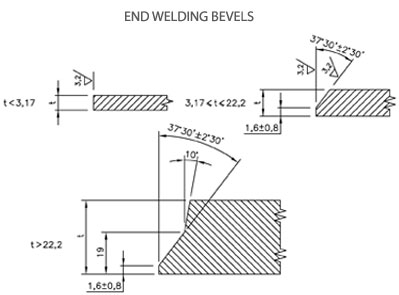

REDUCERS - End welding bevels

REDUCERS - End welding bevels
