Over the years of experience in the industry, we have been able to provide the customers with a broad array of Lateral Tee. Fabricated using ultra-grade raw material, advent tools and sophisticated technologies, the range is available in distinctive sizes and specifications, which can also be customized as per the clients' requirements. The raw material used in the production is sourced from reputed vendors such as DuPont.

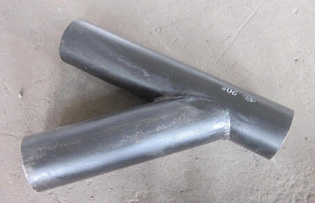

ANSI/ASME B16.9 Lateral Tee
| Standards: | ANSI - B 16.9 ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings' API 590-605 ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings'' ASME B16.25 - 'Buttwelding Ends' ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns' MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications' |
| Schedule: | Sch 5 TO Sch XXS. |
| Sizes: | 1/2” TO 36” (SEAMLESS UPTO 24”) (WELDED 8” TO 36” ) |
| Materials: | Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30 Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Type: | Butt Weld (BW) |
| Thickness: | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Dimension: | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
Dimensions
LATERAL SIZE
Nominal Pipe Size |
TYPE |
Outside Diameter OD |
STD |
X - S |
NPS |
||||||
E & L |
D |
T |
ID |
E & L |
D |
T |
ID |
||||
1 1¼ 1½ |
B B B |
1.315 1.660 1.900 |
5.75 6.25 7.00 |
1.75 1.75 2.00 |
0.133 0.140 0.145 |
1.049 1.380 1.610 |
6.50 7.25 8.50 |
2.00 2.25 2.50 |
0.179 0.191 0.200 |
0.957 1.278 1.500 |
1 1¼ 1½ |
2 2½ 3 |
A/B B B |
2.375 2.875 3.500 |
8.00 9.50 10.00 |
2.50 2.50 3.00 |
0.154 0.203 0.216 |
2.067 2.469 3.068 |
*8.00 **9.00 10.50 11.00 |
2.50 2.50 3.00 |
0.128 0.276 0.300 |
1.939 2.323 2.900 |
2 2½ 3 |
3½ 4 5 |
B A/B B |
4.000 4.500 5.562 |
11.50 12.00 13.50 |
3.00 3.00 3.50 |
0.226 0.237 0.258 |
3.548 4.026 5.047 |
12.50 *12.00 **13.50 15.00 |
3.00 3.00 3.50 |
0.318 0.337 0.375 |
3.364 3.826 4.813 |
3½ 4 5 |
6 8 10 |
A/B B B |
6.625 8.625 10.750 |
14.50 17.50 20.50 |
3.50 4.50 5.00 |
0.280 0.322 0.365 |
6.065 7.981 10.020 |
*14.50 **17.50 20.50 24.00 |
*3.50 **4.00 5.00 5.50 |
0.432 0.500 0.500 |
5.761 7.625 9.750 |
6 8 10 |
12 14 16 |
B B B |
12.750 14.000 16.000 |
24.50 27.00 30.00 |
5.50 6.00 6.50 |
0.375 0.375 0.375 |
12.000 13.250 15.250 |
27.50 31.00 34.50 |
6.00 6.50 7.50 |
0.500 0.500 0.500 |
11.750 13.000 15.000 |
12 14 16 |
18 20 24 |
B B B |
18.000 20.000 24.000 |
32.00 35.00 40.50 |
7.00 8.00 9.00 |
0.375 0.375 0.375 |
17.250 19.250 23.250 |
37.50 40.50 47.50 |
8.00 8.50 10.00 |
0.500 0.500 0.500 |
17.000 19.000 23.000 |
18 20 24 |
