Home / Products / Butt-Welding Fittings / ANSI/ASME B16.9 45° Long Radius Elbow
We offer 90 Degree Long Radius Elbows product Code SBF1001 in following Material specification stated Below. We provide this product as per ASME/ANSI B16.9 Specification.
ANSI/ASME B16.9 45° Long Radius Elbow
| Standards: | ANSI - B 16.9 ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings' API 590-605 ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings'' ASME B16.25 - 'Buttwelding Ends' ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns' MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications' |
| Schedule: | Sch 5 TO Sch XXS. |
| Sizes: | Diameters - from 21,3 to 711 mm. Wall Thickness - from 2 to 40 mm. |
| Materials: | Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30 Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Type: | Butt Weld (BW) |
| Thickness: | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Dimension: | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
Dimensions

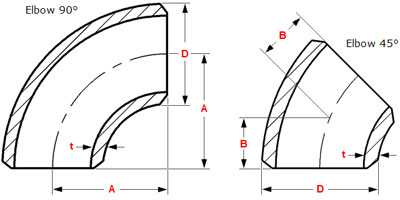

Dimensions Butt Weld Elbows 45° - 90° LR & 3D ASME B16.9
| NPS | O.D. D |
90 degrees Long Radius Center-to-End A |
45 degrees Long Radius Center-to-End B |
90 degrees 3D Center-to-End A |
45 degrees 3D Center-to-End B |
| 1/2 | 21.3 | 38 | 16 | - | - |
| 3/4 | 26.7 | 38 | 19 | 57 | 24 |
| 1 | 33.4 | 38 | 22 | 76 | 31 |
| 1¼ | 42.2 | 48 | 25 | 95 | 39 |
| 1½ | 48.3 | 57 | 29 | 114 | 47 |
| 2 | 60.3 | 76 | 35 | 152 | 63 |
| 2½ | 73 | 95 | 44 | 190 | 79 |
| 3 | 88.9 | 114 | 51 | 229 | 95 |
| 3½ | 101.6 | 133 | 57 | 267 | 111 |
| NPS | O.D. D |
90 degrees Long Radius Center-to-End A |
45 degrees Long Radius Center-to-End B |
90 degrees 3D Center-to-End A |
45 degrees 3D Center-to-End B |
|
|||||
| NPS | O.D. D |
90 degrees Long Radius Center-to-End A |
45 degrees Long Radius Center-to-End B |
90 degrees 3D Center-to-End A |
45 degrees 3D Center-to-End B |
| 4 | 114.3 | 152 | 64 | 305 | 127 |
| 5 | 141.3 | 190 | 79 | 381 | 157 |
| 6 | 168.3 | 229 | 95 | 457 | 189 |
| 8 | 219.1 | 305 | 127 | 610 | 252 |
| 10 | 273 | 381 | 159 | 762 | 316 |
| 12 | 323.8 | 457 | 190 | 914 | 378 |
| 14 | 355.6 | 533 | 222 | 1067 | 441 |
| 16 | 406.4 | 610 | 254 | 1219 | 505 |
| 18 | 457 | 686 | 286 | 1372 | 568 |
| 20 | 508 | 762 | 318 | 1524 | 632 |
| 22 | 559 | 838 | 343 | 1676 | 694 |
| 24 | 610 | 914 | 381 | 1829 | 757 |
| 26 | 660 | 991 | 406 | 1981 | 821 |
| 28 | 711 | 1067 | 438 | 2134 | 883 |
| 30 | 762 | 1143 | 470 | 2286 | 964 |
| 32 | 813 | 1219 | 502 | 2438 | 1010 |
| 34 | 864 | 1295 | 533 | 2591 | 1073 |
| 36 | 914 | 1372 | 565 | 2743 | 1135 |
| 38 | 965 | 1448 | 600 | 2896 | 1200 |
| 40 | 1016 | 1524 | 632 | 3048 | 1264 |
| 42 | 1067 | 1600 | 660 | 3200 | 1326 |
| 44 | 1118 | 1676 | 695 | 3353 | 1389 |
| 46 | 1168 | 1753 | 727 | 3505 | 1453 |
| 48 | 1219 | 1829 | 759 | 3658 | 1516 |
| NPS | O.D. D |
90 degrees Long Radius Center-to-End A |
45 degrees Long Radius Center-to-End B |
90 degrees 3D Center-to-End A |
45 degrees 3D Center-to-End B |
Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.
Dimensional Tolerances of Butt Weld Elbows - 45° & 90° - LR & 3D - ASME B16.9 -
| Nominal Pipe Size | 1/2 to 2½ | 3 to 3½ | 4 | 5 to 8 | 10 to 18 | 20 to 24 | 26 to 30 | 32 to 48 |
| Outside Diameter at Bevel (D) |
+ 1.6 - 0.8 |
1.6 | 1.6 | + 2.4 - 1.6 |
+ 4 - 3.2 |
+ 6.4 - 4.8 |
+ 6.4 - 4.8 |
+ 6.4 - 4.8 |
| Inside Diameter at End | 0.8 | 1.6 | 1.6 | 1.6 | 3.2 | 4.8 | + 6.4 - 4.8 |
+ 6.4 - 4.8 |
| Center-to-End LR (A/B) | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 5 |
| Center-to-End 3D (A/B) | 3 | 3 | 3 | 3 | 3 | 3 | 6 | 6 |
| Wall Thickness (t) | Not less than 87.5% of Nominal Wall Thickness | |||||||
Dimensional tolerances are in millimeters unless otherwise indicated and are equal ± except as noted.
