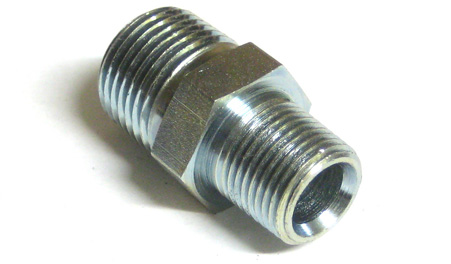

ANSI/ASME B16.9 Butt welding Reducing Nipple

ANSI/ASME B16.9 Butt welding Reducing Nipple Manufacturer & Exporter

Standards: ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings''
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications'
Schedule: Sch 5 TO Sch XXS.
Sizes: 1/2” TO 36”
(SEAMLESS UPTO 24”)
(WELDED 8” TO 36” )
Materials: Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L,  316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type: Butt Weld (BW)
Thickness: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension: ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

Enquiry

Dimensions

1/4"~2" Hexagon
2-1/2"~4" Octagon

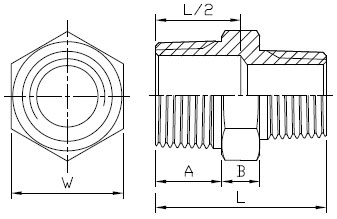

buttweld-asmeB169-Reducing-Nipple

Standard Pattern Economic Pattern
SIZE A B L W
mm in mm in mm in mm in
1/4" 1/8" 13  0.51  6 0.24 31  1.22  15.1 0.59
3/8" 1/8" 14  0.55  7 0.28 34  1.34  18.6 0.73
1/4" 14  0.55  7 0.28 34  1.34  18.6 0.73
1/2" 1/8" 16.5  0.65  0.31  36.5  1.44  23 0.91
1/4" 16.5  0.65  0.31  36.5  1.44  23 0.91
3/8" 16.5  0.65  0.31  36.5  1.44  23 0.91
3/4" 1/8" 16  0.63  0.31  40  1.57  29  1.14
1/4" 16  0.63  0.31  40  1.57  29  1.14
3/8" 17  0.67  0.31  41  1.61  28.5  1.12
1/2" 17  0.67  0.31  41.5  1.63  28.5  1.12
1" 1/4" 20  0.79  9 0.35 41  1.61  35.4  1.39
3/8" 20  0.79  9 0.35 42.5  1.67  35.4  1.39
1/2" 20  0.79  9 0.35 45  1.77  35.4  1.39
3/4" 20  0.79  9 0.35 45  1.77  35.4  1.39
1-1/4" 1/4" 21  0.83  10 0.39 42  1.65  44.5  1.75
3/8" 21  0.83  10 0.39 47  1.85  44.5  1.75
1/2" 21  0.83  10 0.39 49  1.93  44.5  1.75
3/4" 21  0.83  10 0.39 49  1.93  44.5  1.75
1" 22  0.87  10 0.39 52  2.05  44.5  1.75
1-1/2" 1/4" 20  0.79  10.5 0.41 42.5  1.65  51  2.01
3/8" 21  0.83  10  0.39  47  1.85  50  1.97
1/2" 21  0.83  10  0.39  49  1.93  50  1.97
3/4" 21  0.83  10  0.39  49  1.93  50  1.97
1" 21.5  0.85 11  0.39  52.5  2.07  50  1.97
1-1/4" 22  0.87  11  0.43  55  2.17  51  2.01
2" 3/8" 23  0.91  11 0.43 52  2.05  61.5  2.42
1/2" 23  0.91  11 0.43 52  2.05  61.5  2.42
3/4" 23  0.91  11 0.43 41.5  1.63  61.5  2.42
1" 23  0.91  11 0.43 53.5  2.11  61.5  2.42
1-1/4" 23  0.91  11 0.43 56  2.2  61.5  2.42
1-1/2" 23  0.91  11 0.43 55.5  2.19  61.5  2.42
2-1/2" 3/4" 27.5  1.08  13 0.51 64  2.52  78  3.07
1" 27.5  1.08  13 0.51 63.5  2.5  78  3.07
1-1/4" 27.5  1.08  13 0.51 63.5  2.5  78  3.07
1-1/2" 27.5  1.08  13 0.51 63.5  2.5  78  3.07
2" 27.5  1.08  13 0.51 65.5  2.58  78  3.07
3" 1-1/2" 28  1.1  15 0.59 68  2.68  92  3.62
2" 28  1.1  15 0.59 68.5  2.7  93  3.66
2-1/2" 28.5  1.12  15 0.59 71  2.8  92  3.62
4" 2" 30  1.18  15 0.59 75  2.95  117  4.61
2-1/2" 30  1.18  15 0.59 75  2.95  117  4.61
3" 30  1.18  15 0.59 75  2.95  117  4.61

Tolerance: +0.5mm(1/8"~2")

+0.8mm(2-1/2"~4")


SIZE A B L W
mm in mm in mm in mm in
1/4" 1/8" 11 0.43 6 0.24 29 1.14 15 0.59
3/8" 1/8" 12 0.47 7 0.28 31 1.22 18 0.71
1/4" 12 0.47 7 0.28 32 1.26 18 0.71
1/2" 1/8" 14 0.55 7 0.28 34 1.34 23 0.91
1/4" 14 0.55 7 0.28 35 1.38 23 0.91
3/8" 14 0.55 7 0.28 36 1.42 23 0.91
3/4" 1/8" 14 0.55 7 0.28 34 1.34 29 1.14
1/4" 14 0.55 7 0.28 35 1.38 29 1.14
3/8" 14 0.55 7 0.28 36 1.42 29 1.14
1/2" 14 0.55 7 0.28 39 1.54 29 1.14
1" 1/4" 17.5 0.69 9 0.35 41 1.61 35 1.38
3/8" 17.5 0.69 9 0.35 42 1.65 35 1.38
1/2" 17.5 0.69 9 0.35 45 1.77 35 1.38
3/4" 17.5 0.69 9 0.35 45 1.77 35 1.38
1-1/4" 1/4" 18 0.71 10 0.39 42 1.65 45 1.77
3/8" 18 0.71 10 0.39 43 1.69 45 1.77
1/2" 18 0.71 10 0.39 46 1.81 45 1.77
3/4" 18 0.71 10 0.39 46 1.81 45 1.77
1" 18 0.71 10 0.39 50 1.97 45 1.77
1-1/2" 1/4" 18.5 0.73 10.5 0.41 42.5 1.67 50 1.97
3/8" 18.5 0.73 10.5 0.41 43.5 1.71 50 1.97
1/2" 18.5 0.73 10.5 0.41 46.5 1.83 50 1.97
3/4" 18.5 0.73 10.5 0.41 46.5 1.83 50 1.97
1" 18.5 0.73 10.5 0.41 50.5 1.99 50 1.97
1-1/4" 18.5 0.73 10.5 0.41 50.5 1.99 50 1.97
2" 3/8" 20 0.79 11 0.43 45 1.77 62 2.44
1/2" 20 0.79 11 0.43 48 1.89 62 2.44
3/4" 20 0.79 11 0.43 48 1.89 62 2.44
1" 20 0.79 11 0.43 52 2.05 62 2.44
1-1/4" 20 0.79 11 0.43 52 2.05 62 2.44
1-1/2" 20 0.79 11 0.43 52 2.05 62 2.44
2-1/2" 3/4" 22.5 0.89 13 0.51 52.5 2.07 78 3.07
1" 22.5 0.89 13 0.51 56.5 2.22 78 3.07
1-1/4" 22.5 0.89 13 0.51 56.5 2.22 78 3.07
1-1/2" 22.5 0.89 13 0.51 56.5 2.22 78 3.07
2" 22.5 0.89 13 0.51 57.5 2.26 78 3.07
3" 1-1/2" 25 0.98 15 0.59 61 2.4 91 3.58
2" 25 0.98 15 0.59 62 2.44 91 3.58
2-1/2" 25 0.98 15 0.59 64.5 2.54 91 3.58
4" 2" 27 1.06 15 0.59 64 2.52 117 4.61
2-1/2" 27 1.06 15 0.59 66.5 2.62 117 4.61
3" 27 1.06 15 0.59 69 2.72 117 4.61

Tolerance: +0.5mm(1/8"~2")

+0.8mm(2-1/2"~4")
