45 Degree Steel Elbow (Butt weld Elbow 45 degree)
Kalikund Steel & Engineering Co. have expertise as manufacturer and exporter of 45 Degree Steel Butt Weld Elbow in India.
The function of a 45 Degree elbow is the same as a 90° elbow, but the measurement of dimensions, however, is different to that of the 90° elbow. The radius of a 45 Degree elbow is the same as the radius of the 90° L.R. elbow where ‘R’ equals 1 ½ Degree.
However, the centre to face dimension is not equivalent to the radius as in 90° L.R. elbows. This is measured from each face to the point of intersection of the centre lines perpendicular to each other. This is due to the smaller degree of bend.
Our 45 Degree Steel Butt Weld Elbow are checked for dimensional accuracy from raw material stage to in process & final product delivery by using calibrated measuring instruments. 45 Degree Steel Butt Weld Elbow are tested in accordance to internationally recognized standards. These Elbows are widely used for connecting two pipes or tubes., to change of direction. Clients can send their Butt weld Elbow Fittings and 45 Degree Steel Butt Weld Elbow enquiry to us.
Features:
45 Degree Steel Butt Weld Elbow - resistance against corrosion & abrasion, seamless finishing and dimensional stability.
Application:
Petroleum, Chemical, Power, Gas, Metallurgy, Shipbuilding, Construction etc.
Size Schedule Type Form Materials Brand Name Certification Minimum Order Quantity Packaging Details Delivery Time Payment Terms Supply Ability |
1/2"NB TO 48"NB IN SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS Seamless / ERW / Welded / Fabricated 45 Degree Steel Butt Weld Elbow, 45 Degree Steel Elbows, 45 Degree Steel Butt Weld Elbow, Short Radius, Long Radius, Any required deg. SMT/Os-lok |
INCHES | METRIC | ||||||

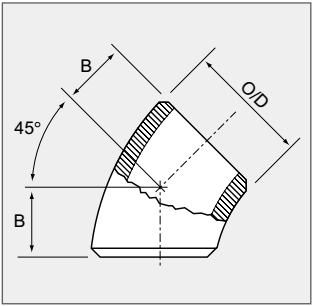

N.B. | O.D. at Bevel | A | B | N.B. | O.D. At Bevel | A | B |
½ | .840 | 1 ½ | 5/8 | 15 | 21.34 | 38.10 | 15.88 |
¾ | 1.050 | 1 1/8 | 7/16 | 20 | 26.67 | 28.58 | 14.29 |
1 | 1.315 | 1 ½ | 7/8 | 25 | 33.40 | 38.10 | 22.23 |
1 ¼ | 1.660 | 1 7/8 | 1 | 32 | 42.16 | 47.63 | 25.40 |
1 ½ | 1.900 | 2 ¼ | 1 1/8 | 40 | 48.26 | 57.15 | 28.58 |
2 | 2.375 | 3 | 1 3/8 | 50 | 60.33 | 76.20 | 34.93 |
2 ½ | 2.875 | 3 ¾ | 1 ¾ | 65 | 73.03 | 95.25 | 44.45 |
3 | 3.500 | 4 ½ | 2 | 80 | 88.90 | 114.30 | 50.80 |
3 ½ | 4.000 | 5 ¼ | 2 ¼ | 90 | 101.60 | 133.35 | 57.15 |
4 | 4.500 | 6 | 2 ½ | 100 | 114.30 | 152.40 | 63.50 |
5 | 5.563 | 7 ½ | 3 1/8 | 125 | 141.30 | 190.50 | 79.37 |
6 | 6.625 | 9 | 3 ¾ | 150 | 168.28 | 228.60 | 95.25 |
8 | 8.625 | 12 | 5 | 200 | 219.08 | 304.80 | 127.00 |
10 | 10.750 | 15 | 6 ¼ | 250 | 273.05 | 381.00 | 158.70 |
12 | 12.750 | 18 | 7 ½ | 300 | 323.85 | 457.20 | 190.50 |
14 | 14.000 | 21 | 8 ¾ | 350 | 355.60 | 533.40 | 222.25 |
16 | 16.000 | 24 | 10 | 400 | 406.40 | 609.60 | 254.00 |
18 | 18.000 | 27 | 11 ¼ | 450 | 457.20 | 685.80 | 285.75 |
20 | 20.000 | 30 | 12 ½ | 500 | 508.00 | 762.00 | 317.50 |
22 | 22.000 | 33 | 13 ½ | 550 | 558.80 | 838.20 | 342.90 |
24 | 24.000 | 36 | 15 | 600 | 609.60 | 914.40 | 381.00 |
26 | 26.000 | 39 | 16 | 650 | 660.40 | 990.60 | 406.40 |
28 | 28.000 | 42 | 17 ¼ | 700 | 711.20 | 1066.80 | 438.15 |
30 | 30.000 | 45 | 18 ½ | 750 | 762.00 | 1143.00 | 469.90 |
32 | 32.000 | 48 | 19 ¾ | 800 | 812.80 | 1219.20 | 501.65 |
34 | 34.000 | 51 | 21 | 850 | 863.60 | 1295.40 | 533.40 |
36 | 36.000 | 54 | 22 ¼ | 900 | 914.40 | 1371.60 | 565.15 |
38 | 38.000 | 57 | 23 5/8 | 950 | 965.20 | 1447.80 | 600.08 |
40 | 40.000 | 60 | 24 7/8 | 1000 | 1016.00 | 1524.00 | 631.83 |
42 | 42.000 | 63 | 26 | 1050 | 1066.80 | 1600.20 | 660.40 |
44 | 44.000 | 66 | 27 3/8 | 1100 | 1117.60 | 1676.40 | 695.33 |
46 | 46.000 | 69 | 28 5/8 | 1150 | 1168.40 | 1752.60 | 727.08 |
48 | 48.000 | 72 | 29 7/8 | 1200 | 1219.20 | 1828.80 | 758.83 |
